Product Details
＋

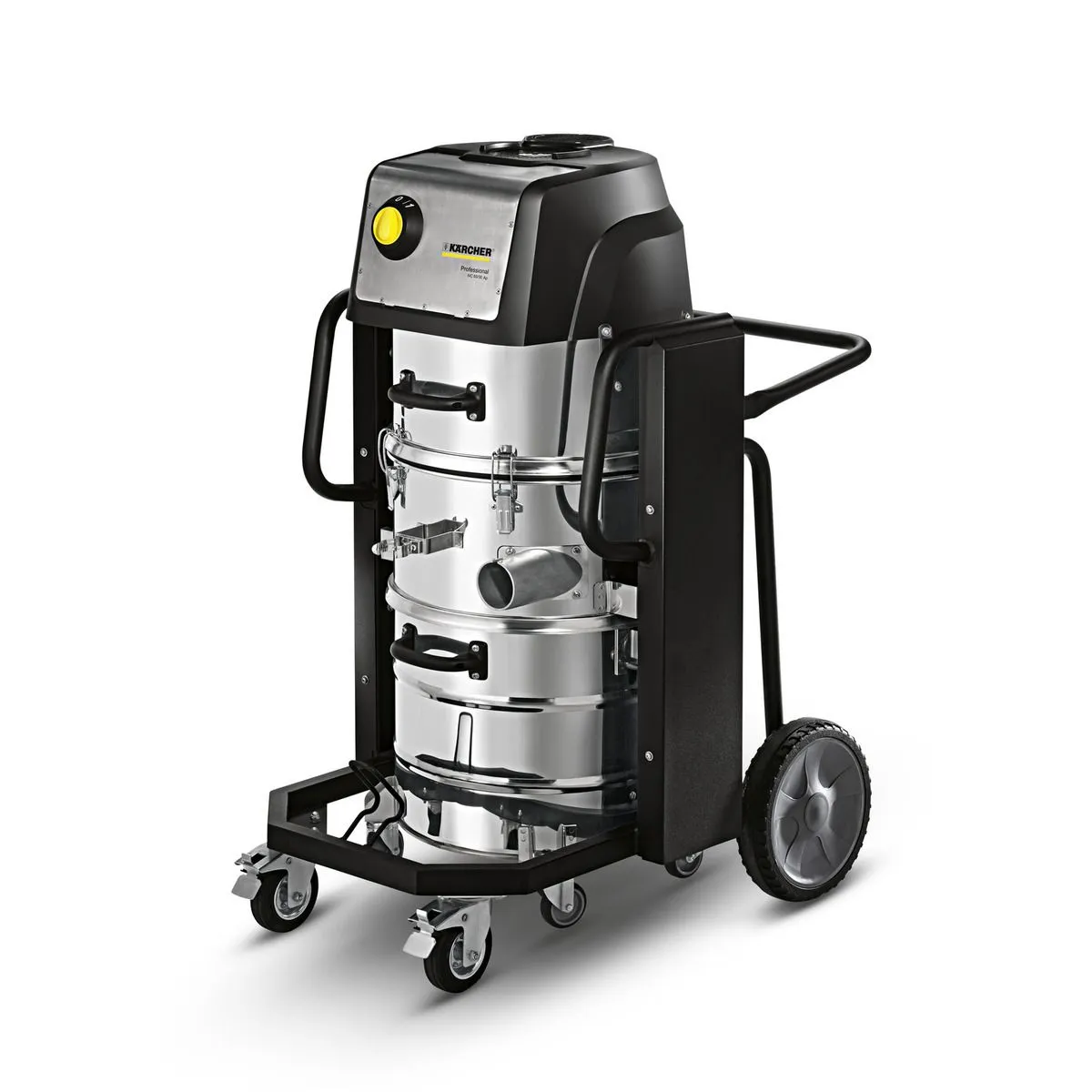

The compact IVC 60/30 Ap industrial vacuum is ideal for cleaning manufacturing areas and production machinery. With its wear-resistant side channel blower, the machine is also suitable for continuous use and is therefore ideal as a stationary extraction unit in production and packaging machines. Manual filter cleaning extends the filter life considerably.
Features and benefits
Wear-resistant side channel blower
- A side channel blower delivers high suction power with a very long lifetime of at least 20,000 hours. These machines are therefore ideal for multiple shift operation.
Automatic Filter Cleaning System TactÃã²
- The two filters are cleaned with targeted, powerful blasts of air. The procedure is triggered automatically, the suction power remains constantly high, and the work can be continued without interruption.
- Filter designed to allow uninterrupted use with constant high suction power.
Waste container with set-down mechanism
- The waste container with set-down mechanism ensures ergonomic emptying, even when the vacuumed waste is heavy.
With compact flat pleated filter
- The compact flat pleated filter allows a large filter area with a small and clear design.
Specifications
Technical data
| Current type (Ph/V/Hz) | 3 / 400 / 50 |
| Air flow rate (l/s/mÃã³/h) | 68 / 244.8 |
| Vacuum (mbar/kPa) | 286 / 28.6 |
| Container capacity (l) | 60 |
| Rated input power (kW) | 3 |
| Filter area (mÃã²) | 1.9 |
| Nominal diameter of connection | ID / 70 |
| Nominal diameter of accessory | ID / 70 / ID / 50 / ID / 40 |
| Sound pressure level (dB(A)) | 77 |
| Weight (kg) | 95 |
| Dimensions (L ã W ã H) (mm) | 970 x 690 x 1240 |
Equipment
- Accessories in scope of delivery, No
